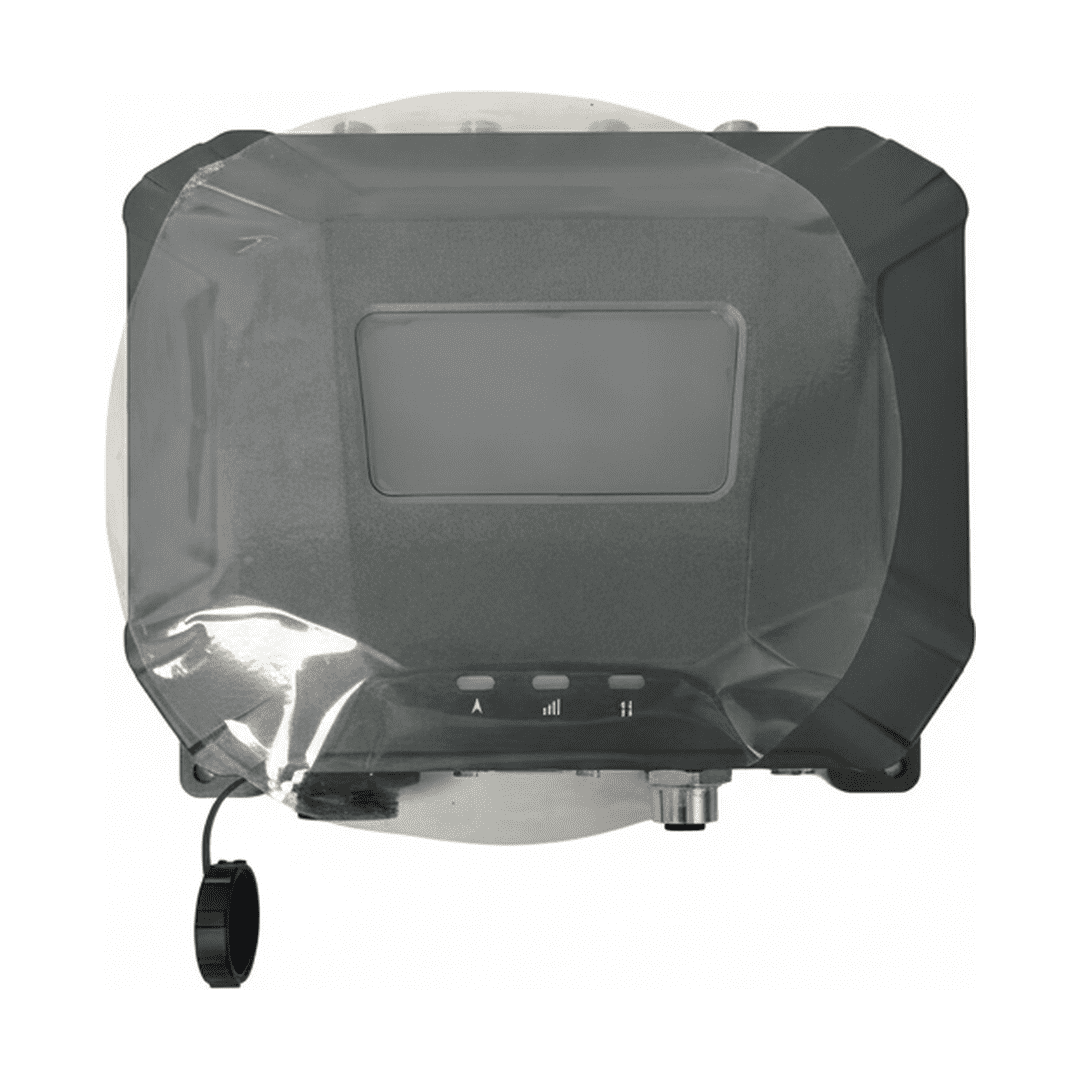

RB3 GNSS Box Receiver – Powered by Septentrio AsteRx M3 Pro+
High-precision GNSS receiver powered by Septentrio technology. RTK accuracy, multi-constellation tracking, and AIM+ anti-jamming protection. Ideal for UAV integration.
Description
Product Overview
RB3 GNSS Box Receiver
RTK GNSS Receiver | Dual-Antenna Heading | 544 Channels | Integrated 4G / UHF / WiFi | IP67 Rugged
The RB3 GNSS Box Receiver — powered by Septentrio AsteRx M3 Pro+ — is a high-precision, multi-constellation RTK GNSS receiver and heading system designed for the most demanding professional positioning environments. Featuring 544 tracking channels, full support for GPS, GLONASS, BeiDou, Galileo, QZSS, SBAS, and an integrated L-band receiver, the RB3 guarantees maximum satellite visibility and signal continuity across all geographic regions and terrain types.
The RB3 delivers RTK horizontal accuracy of 0.6 cm + 0.5 ppm and RTK vertical accuracy of 1 cm + 1 ppm, making it one of the most precise GNSS receivers available for field professionals. The dual-antenna design provides real-time heading output with orientation accuracy of 0.03° at 5-meter antenna spacing and 0.15° at 1-meter spacing — eliminating the need for a magnetic compass in UAV, machine control, and autonomous navigation applications.
Unlike standalone GNSS modules, the RB3 integrates a complete field-ready communication suite: 4G LTE full-netcom connectivity, a UHF radio transceiver (410–470 MHz, 1W TX power), 802.11b/g WiFi, Bluetooth 5.0 with EDR downward compatibility, and 100M Ethernet — all in one IP67-rated enclosure that withstands -40°C to +80°C operating temperatures, 100% anti-condensing humidity, and 1.5-meter free-drop impact resistance.
Running on a Linux A7 operating system, the RB3 supports advanced network management including NTRIP Caster/Server/Client, VPN, OpenVPN, intranet penetration, dynamic domain names, and remote web-based configuration — making it equally suited for permanent reference station deployment and mobile field operations. Internal 32GB storage records data in NMEA 0183, RTCM V2.x/V3.x, Rinex v3.04/v2.11, and ROX formats, with support for simultaneous network transmission of 2–4 data streams.
Key Applications
- UAV / Drone Ground Control & Navigation
- Precision Land & Aerial Surveying
- Construction Machine Control & Guidance
- Autonomous Ground Vehicles
- Geodetic & Deformation Monitoring
- Earthquake & Structural Monitoring
- Precision Agriculture
- Marine Positioning & Navigation
- Reference Station / CORS Network Node
- GIS Data Collection
Key Features
GNSS Performance
| Feature | Detail |
|---|---|
| GNSS Engine | Septentrio AsteRx M3 Pro+ |
| Tracking Channels | 544 channels |
| Update Rate | 100 Hz |
| L-band Receiver | Integrated |
| Cold Start | Less than 45 seconds |
| Warm Start | Less than 20 seconds |
| Signal Reacquisition | Average 1 second |
Positioning Accuracy
| Mode | Horizontal | Vertical |
|---|---|---|
| RTK | 0.6 cm + 0.5 ppm (RMS) | 1 cm + 1 ppm (RMS) |
| SBAS | 0.6 m | 0.8 m |
| DGNSS / DGPS | 0.4 m | 0.7 m |
Heading & Attitude Accuracy
| Antenna Spacing | Heading Accuracy | Pitch / Roll Accuracy |
|---|---|---|
| 1 meter | 0.15° | 0.25° |
| 5 meters | 0.03° | 0.05° |
Satellite System Support
| Satellite System | Supported Signals |
|---|---|
| GPS | L1 C/A, L1C, L2C, L2 P(Y), L5 |
| GLONASS | L1 C/A, L2C/A, L3, L2P |
| BeiDou (BDS) | B1I, B1C, B2a, B2b, B2I, B3I |
| Galileo | E1, E5a, E5b |
| QZSS | L1 C/A, L1C/B, L1C, L2C, L5 |
| SBAS | EGNOS (Europe), WAAS (USA), GAGAN (India), MSAS (Japan), SDCM (Russia) |
| L-band | Integrated L-band receiver |
Detailed Technical Specifications
Data Recording & Storage
| Parameter | Value |
|---|---|
| Internal Storage | 32 GB |
| Expandable Storage | Micro TF card |
| Output Data Formats | NMEA 0183, RTCM V2.x / V3.2 / V3.3, Rinex v3.04 / v2.11 |
| Differential Formats | ROX, RTCM 2.x, RTCM 3.x, CMR, CMR+ |
| Simultaneous Network Streams | 2 to 4 simultaneous transmission processes |
Communication & Connectivity
| Interface | Specification |
|---|---|
| 4G LTE | Full Netcom communication module |
| UHF Radio | TRM101 HDSC transceiver, TX power 1W, frequency 410–470 MHz |
| WiFi | IEEE 802.11 b/g |
| Bluetooth | BT 5.0 EDR with downward compatibility and LE support |
| Ethernet | 100 Mbps, M12 connector |
| SIM Card | Micro SIM |
| CAN Bus | 2x CAN (PWR), M12 connector |
| Serial | SER M12 connector |
| GNSS Antenna Ports | GNSS1 (TNC, primary) + GNSS2 (TNC, secondary) |
System & Software
| Parameter | Value |
|---|---|
| Operating System | Linux A7 |
| NTRIP | Caster / Server / Client |
| Remote Management | Web browser configuration, dedicated remote management software |
| On-site Management | Bluetooth, serial port, WiFi, Android management app |
| Network Features | VPN, OpenVPN, intranet penetration, dynamic domain name |
| Security | HTTPS/SSL, IP filtering, NTRIP auth, multi-level user access (developer, admin, view, guest) |
Environmental & Physical
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to +80°C |
| Storage Temperature | -45°C to +85°C |
| Humidity | 100% anti-condensing |
| Ingress Protection | IP67 |
| Drop Resistance | 1.5m free drop onto concrete (at room temperature) |
| Input Voltage | +7V to +36V DC |
| Power Consumption | 5W |
| Dimensions (unit) | 158.4mm × 121mm × 43mm |
LED Indicator Status
| Indicator | Color | Status Meaning |
|---|---|---|
| Position / Heading | Green / Red | Solid green: Fixed RTK solution · Flashing green: Other solution · Green off: No position · Solid red: Heading active · Red off: No heading |
| 4G / Bluetooth | Red / Green | Green on: Bluetooth connected · Green off: Bluetooth disconnected · Red on: 4G normal · Flashing red: Network abnormal · Red off: 4G disabled |
| Differential Data | Green / Red | Solid green: Transmitting via 4G · Flashing green: Transmitting via radio · Solid red: Receiving via 4G · Flashing red: Receiving via radio |
Competitive Advantages
- 544-channel Septentrio AsteRx M3 Pro+ engine — among the highest channel counts available in a compact field receiver
- Integrated L-band receiver enables PPP correction without external correction hardware
- All-in-one communication: 4G LTE, UHF radio, WiFi, Bluetooth 5.0, and Ethernet in a single enclosure
- Heading accuracy of 0.03° at 5m antenna spacing — superior to magnetic compass-based solutions
- IP67 + 1.5m drop resistance — built for harsh outdoor environments and rough field conditions
- -40°C to +80°C operating range covers arctic, desert, and tropical deployment scenarios
- Linux A7 OS with web-based remote management, VPN, and multi-stream NTRIP support
- 32GB internal storage with Rinex, RTCM, NMEA and ROX format support for post-processing and real-time use
- Wide voltage input (+7V to +36V DC) compatible with vehicle, drone, and solar power systems
- Android app + web UI + remote management software for complete flexible field and office control
Standards & Compatibility
- Output Protocols: NMEA 0183, RTCM V2.x / V3.2 / V3.3, Rinex v3.04 / v2.11, ROX
- Differential Input: RTCM 2.x, RTCM 3.x, CMR, CMR+, third-party OEM board formats
- Network: NTRIP Caster / Server / Client, VPN, OpenVPN, intranet penetration
- Security: HTTPS/SSL, IP filtering, multi-level user access control
- Management: Android app, web browser, serial port, Bluetooth, dedicated remote software
- Platform Integration: Compatible with survey controllers, UAV autopilots, ROS, machine control systems
Disclaimer
Specifications subject to change without notice. All accuracy values are nominal RMS under open-sky conditions unless stated otherwise.
