The Septentrio mosaic-H GNSS receiver is a compact, 448-channel, multi-constellation module designed to solve weaknesses of RTK, PPP, and PPP-RTK by providing centimeter-level accuracy, fast convergence, and advanced interference protection.

Introduction

In GNSS, the limitations of RTK, PPP, and PPP-RTK affect performance in long-distance, global, high-speed, and interference-heavy environments.

GNSS Technology Challenges

Limitations of RTK, PPP, and PPP-RTK

In GNSS, RTK, PPP, and PPP-RTK each have strengths and limitations related to distance, convergence time, and atmospheric sensitivity.

Environmental & Electromagnetic Issues

Urban canyons, UAVs, high-voltage corridors, and radio interference can cause signal loss, drifting, and reinitialization.

Septentrio mosaic-H GNSS Receiver Overview

Ultra-Compact High-Performance GNSS Engine

Size: 31 × 31 × 4 mm, 6.8 g, 448-channel full-constellation support.

Power Efficiency

0.6W ultra-low-power consumption, 40% less than similar GNSS receivers.

Anti-Jamming, Anti-Vibration & Atmospheric Protection Suite

AIM+ Anti-Jamming

Removes narrowband, wideband, pulse, and frequency-sweep interference.

LOCK+ Anti-Vibration

Maintains stable performance even when operating on rough terrain.

IONO+ & APME+

IONO+ protects against ionospheric scintillation; APME+ removes multipath signals.

Dual-Antenna Heading

Heading accuracy of 0.15° with a 1-meter baseline; no magnetic calibration required.

Connectivity & Integration

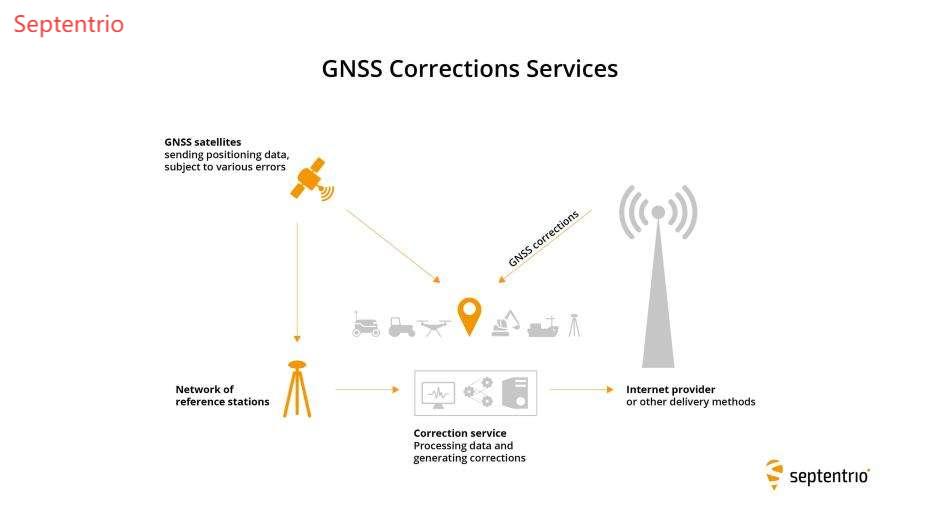

Flexible GNSS Correction Access

RTK, PPP-RTK, and PPP with seamless mode switching.

Developer-Friendly Interfaces

Includes 4×UART, USB, CAN, Ethernet, and SDIO with SDK support.

Applications & Productivity Gains

Useful in agriculture, robotics, surveying, autonomous systems, with productivity improvements across all seasons.

Factual Density — Key Technical Specs

• Size: 31 × 31 × 4 mm

• Weight: 6.8 g

• Channels: 448 full-constellation

• Constellations: GPS, BeiDou, Galileo, GLONASS, QZSS, NavIC

• Power: 0.6W

• Update Rate: 100 Hz

• Heading Accuracy: 0.15°

• Timestamp Precision: +5 ns

• Memory: 16 GB onboard

• Interfaces: 4×UART, USB, CAN, Ethernet, SDIO

Conclusion Summary

The Septentrio mosaic-H GNSS receiver delivers stable, fast, and interference-resistant centimeter-level accuracy with advanced anti-jamming technologies and ultra-low power consumption.
