Introduction to High-Precision Land Monitoring
In today’s critical fields of land resource management, precision agriculture development, and environmental sustainability monitoring, drone technology is revolutionizing traditional ground survey methods with unprecedented efficiency. However, as land monitoring tasks evolve from macro-level parcel identification to micro-level soil characteristic analysis, and from simple area calculations to complex ecological change tracking, the “decimeter-level” positioning accuracy provided by traditional GNSS modules falls far short of modern land management’s precision requirements.
A centimeter-level deviation could trigger disputes over land ownership boundaries, while a single coordinate offset might undermine precision agriculture’s variable-rate fertilization efforts. Such minute errors can undermine the decision-making foundation of entire land management projects.
This is precisely where the Septentrio mosaic-X5 GNSS module demonstrates its revolutionary value: it is not merely a navigation positioning module, but a high-precision spatial data acquisition system tailored for precise land monitoring.
Why the Septentrio mosaic-X5 GNSS Module Stands Out
Compact but Extremely Powerful GNSS Hardware
Within an exceptionally compact footprint (31×31×4 mm), this module integrates 448 hardware channels, supporting full-constellation, multi-frequency satellite signal reception, ensuring optimal performance even in challenging environments.
Septentrio GNSS+ Technology Suite
– AIM+ Advanced Anti-Interference Technology
– APME+ Multipath Suppression
– LOCK+ Reliable Tracking Technology
High-Precision RTK Performance
– Horizontal accuracy: 0.6 cm + 0.5 ppm
– Vertical accuracy: 1 cm + 1 ppm

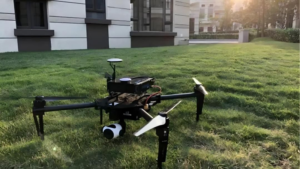

Integration Into Land Monitoring Drones
High-Speed Drone Mapping & Imaging
– 100Hz update rate
– <10ms latency
– Ideal for orthophotos, DEM, DSM

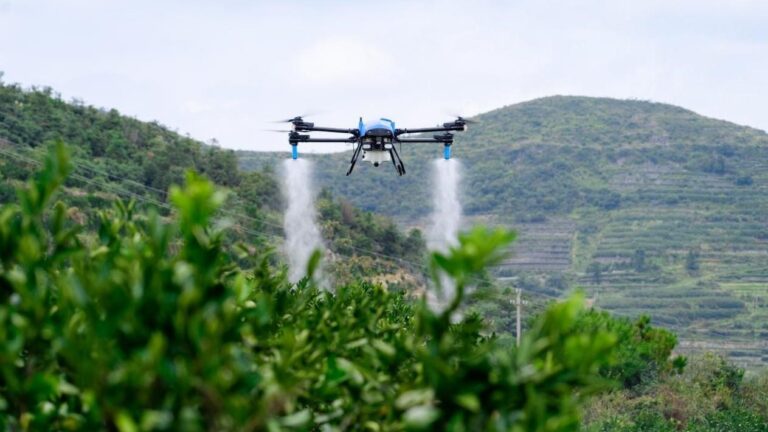

Precision Agriculture Applications
– Soil property variation detection
– Crop growth pattern mapping
– Supports variable-rate fertilization
Large-Scale Land Survey Efficiency
– Cold start: <45 seconds
– RTK initialization: 7 seconds
– Power consumption: 0.6W
Long-Term Reliability and Field Durability
– Operating temperature: –40°C to +85°C
– MIL-STD-810G ruggedness
– SDKs and documentation for easy integration
Technical Specification Highlights
– 448 hardware channels
– GPS, GLONASS, Galileo, BeiDou, QZSS
– L1/L2/L5 multi-frequency
– 100 Hz update rate
– <10 ms latency
– Cold start: <45 s
– RTK init: 7 s
– 0.6 W power consumption
– AIM+ / APME+ / LOCK+
– –40°C to +85°C
– MIL-STD-810G
– 31 × 31 × 4 mm
Conclusion
The Septentrio mosaic-X5 GNSS receiver is a high-precision, multi-frequency, full-constellation positioning module engineered for land monitoring drones. With 448 channels, centimeter-level RTK accuracy, AIM+ anti-interference, APME+ multipath suppression, LOCK+ tracking stabilization, 100Hz update rate, and 0.6W low power consumption, it is designed for precision agriculture, land resource surveys, and environmental monitoring. Built to MIL-STD-810G rugged standards and operating from –40°C to +85°C, it ensures highly reliable, stable spatial data in demanding field environments.
