Introduction to High-Precision Construction Monitoring
In the field of modern construction engineering monitoring, as construction precision requirements become increasingly stringent and safety management standards continue to rise, drone monitoring technology is emerging as a vital tool for engineering quality control due to its unique advantages. However, when monitoring tasks evolve from simple progress logging to millimeter-level structural deformation analysis, and from single-point positioning to complex spatial attitude monitoring, the performance limitations of traditional GNSS receivers become increasingly apparent. A centimeter-level positioning error could lead to cumulative deviations in steel structure installation, while a single instantaneous heading measurement error might mask minute building displacements. These seemingly insignificant errors can potentially create serious safety hazards.
Why the Septentrio AsteRx-m3 Pro+ Stands Out
A Comprehensive Engineering Monitoring Solution
This is precisely where the Septentrio AsteRx-m3 Pro+ GNSS receiver demonstrates its exceptional value: it transcends being merely a navigation receiver, serving instead as a comprehensive engineering monitoring solution that integrates cutting-edge positioning technology with attitude measurement capabilities.
Advanced Architecture and Hardware Design
Compared to other GNSS products, the AsteRx-m3 Pro+ derives its fundamental advantage from its “all-around precision and reliability” system architecture design. Within its compact dimensions (47.5×70×9.32 mm), this receiver integrates an impressive 544 hardware channels, supporting full-constellation, multi-frequency signal reception from GPS, GLONASS, BeiDou, Galileo, and others. This ensures consistently excellent signal capture even in complex construction environments with dense rebar or large machinery operations.
Dual-Antenna Attitude Measurement
Its true technological breakthrough lies in an innovative dual-antenna design that directly provides heading accuracy better than 0.15° and pitch/roll information via GNSS signals, completely eliminating the limitations of traditional magnetometers prone to electromagnetic interference on construction sites.
GNSS+ Technology Enhancements for Construction Sites
AIM+ Advanced Anti-Interference
AIM+ advanced anti-interference technology effectively suppresses strong electromagnetic interference from welding equipment, cranes, and similar sources, ensuring monitoring data reliability.
APME+ Multipath Suppression
APME+ multipath suppression technology precisely eliminates signal reflection errors from building surfaces like steel structures and glass curtain walls.
LOCK+ Signal Tracking
LOCK+ technology ensures stable signal tracking even under harsh conditions like strong winds and vibrations.
Centimeter-Level RTK Accuracy
The seamless integration of these cutting-edge technologies enables the AsteRx-m3 Pro+ to deliver continuous, reliable centimeter-level RTK positioning accuracy:
Horizontal: 0.6 cm + 0.5 ppm
Vertical: 1 cm + 1 ppm

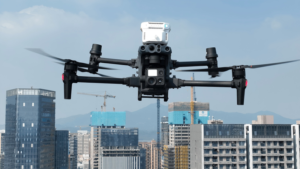

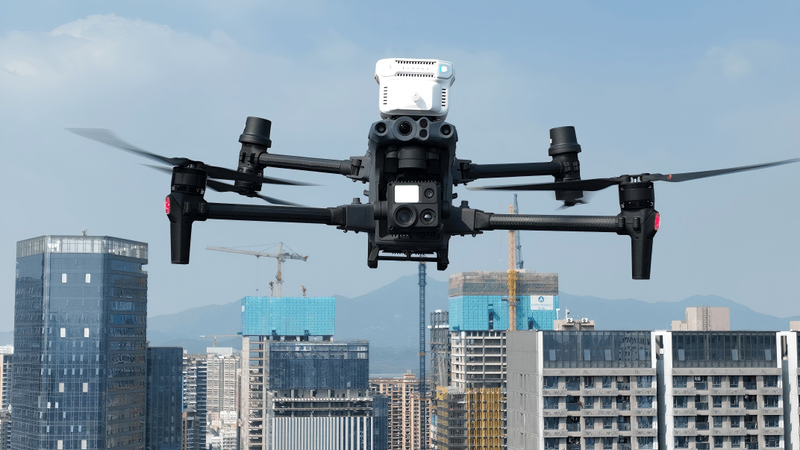

Application Benefits for Construction Monitoring Drones
Real-Time High-Precision Data Collection
At the high-precision construction monitoring level, the receiver’s 100Hz ultra-high update rate and ultra-low latency ensure drones can capture precise spatial coordinates for each monitoring point in real time during high-speed flight operations.

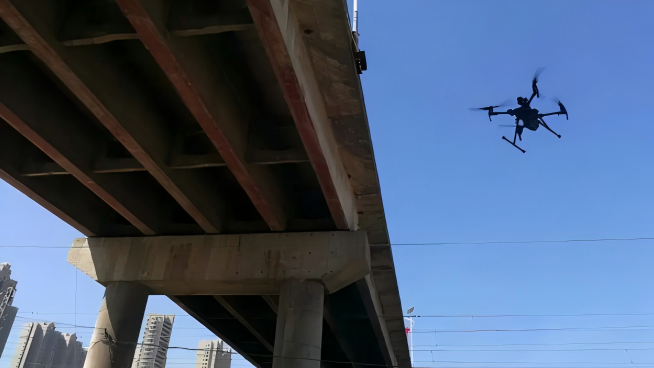

Structural Safety Monitoring
Its outstanding dual-antenna attitude measurement capability enables the drone to precisely detect minute displacements, settlements, and deformations in buildings. Continuous spatial attitude data provides scientific basis for structural health assessments.
Earthwork and Terrain Measurement
For earthwork measurement applications, its rapid initialization capability (cold start <45 seconds, RTK initialization in 7 seconds) combined with centimeter-level positioning accuracy enables precise earthwork volume calculations and terrain analysis.
Full Construction Lifecycle Performance
Its ultra-low power consumption (only 1W) and wide temperature operating range (-40°C to +85°C) ensure stable, continuous operation across all construction phases—from foundation to structural topping out.
Use Cases
– Verticality control for super-tall buildings
– Calibration of large-span steel structures
– Tunnel convergence monitoring
– Large-scale project continuous monitoring
A Precision-Driven Choice for Modern Construction
Selecting the Septentrio AsteRx-m3 Pro+ GNSS receiver is far more than choosing a navigation component—it injects the most reliable “precision gene” into the entire engineering monitoring system. In today’s era of increasingly stringent quality requirements and evolving safety management standards in modern construction, the precision and reliability of monitoring data directly impact project quality and construction safety.
Durability, Integration Support & Long-Term Reliability
The receiver’s military-grade rugged design (MIL-STD-810G shock resistance) ensures it can handle monitoring tasks in diverse, complex environments. Along with comprehensive documentation, SDKs, and excellent compatibility, system integration becomes simple and efficient, reducing deployment cycles and boosting monitoring productivity.
Summary
The Septentrio AsteRx-m3 Pro+ GNSS receiver elevates construction monitoring drones into high-precision engineering tools capable of millimeter-level structural analysis, real-time spatial attitude monitoring, and reliable performance in harsh construction environments. With 544 channels, dual-antenna heading accuracy, and GNSS+ technologies such as AIM+, APME+, and LOCK+, it delivers consistent, interference-free centimeter-level RTK accuracy. Its integration into drone systems enhances progress tracking, structural safety monitoring, earthwork measurement, and full-cycle project control—establishing a new standard for modern engineering precision.
