Overview
Drone aerial photography, robots navigating warehouses, autonomous vehicles working in fields—all dread positioning errors: misaligned photos, deviating flight paths, and reworked data. Traditional solutions often overcomplicate matters: a single GNSS receiver handles centimeter-level coordinates, requiring external antennas, large batteries, and metal casings. This instantly inflates size, weight, power consumption, and cost—yet still fails to overcome the urban canyon dilemma where “GNSS fixed solutions become floating solutions.” The Septentrio mosaic-X5 GNSS receiver packs “full constellation, full frequency, 100Hz RTK, anti-interference, satellite-based PPP-RTK” into a compact “powerhouse” measuring just 31×31×4 mm and weighing 6.8 grams: the mosaic-X5 GNSS receiver. With 544 channels simultaneously tracking GPS/BeiDou/ GLONASS/Galileo/QZSS/NavIC, dual L-band direct reception of PPP-RTK correction signals broadcast by satellites, achieving decimeter-level accuracy within 60 seconds globally without base stations; 100Hz output with <10ms latency enables drones to capture high-speed continuous shots at 15m/s while maintaining centimeter-level coordinate accuracy per image; Integrated Septentrio AIM+ anti-jamming technology + OSNMA navigation message authentication automatically filters out narrowband, broadband, pulse, and spoofing signals, ensuring rock-solid stability even in electromagnetic jungles like high-voltage lines, radar stations, and airports; Ultra-low 0.6W power consumption saves nearly half the battery life compared to other GNSS receivers in the industry, halving battery size while extending endurance without adding weight. One GNSS receiver equals an “RTK receiver + anti-jamming unit + satellite-based base station.” Development cycles shrink from ‘months’ to “weeks,” with BOM costs reduced by 30%. Use Septentrio mosaic-X5 GNSS receivers today and enable your devices to achieve “centimeter-level positioning and millisecond-level tracking” tomorrow.
Performance Comparison
While others are still “building with blocks,” the Septentrio mosaic-X5 GNSS receiver delivers an “integrated solution.” Common L1 single-frequency receivers offer only 2-5m accuracy, with 5Hz update rates and 80ms latency—resulting in meter-level misalignment in photos. Consumer-grade multi-frequency boards may reduce errors to 2-3 centimeters, but with an 8Hz update rate and 50ms latency, they lag behind during high-speed motion and lose fixed solutions when GNSS signals are disrupted. To cut costs, most receivers skimp on shielding layers and filters, leading to frequent “false fixes” in urban canyons—only revealing coordinate shifts during post-processing. The Septentrio mosaic-X5 GNSS receiver embeds “high performance” directly into its automotive-grade ASIC chip with patented algorithms: delivering RTK positioning accuracy of 0.6 cm + 0.5 ppm and velocity accuracy of 0.001 m/s—an order of magnitude higher than competing products. 100Hz full-constellation output with latency under 6 milliseconds—just one-tenth of industry norms—ensures robots stop abruptly and drones turn sharply without drift. Hardware event markers trigger 20-nanosecond pulses, directly locking camera shutters without flight controller feedback, reducing photo positioning errors from centimeters to millimeters. SMT-mounted with full interfaces: 4×UART + USB + ETH + SDIO. A single Ethernet cable enables firmware flashing, data retrieval, and remote diagnostics. The development board is plug-and-play, with ROS/routines open-source and ready to compile. Field tests show significantly extended single-battery flight times after board replacement, with aerial triangulation photo errors reduced to millimeter-level accuracy.
Commercial & Operational Value

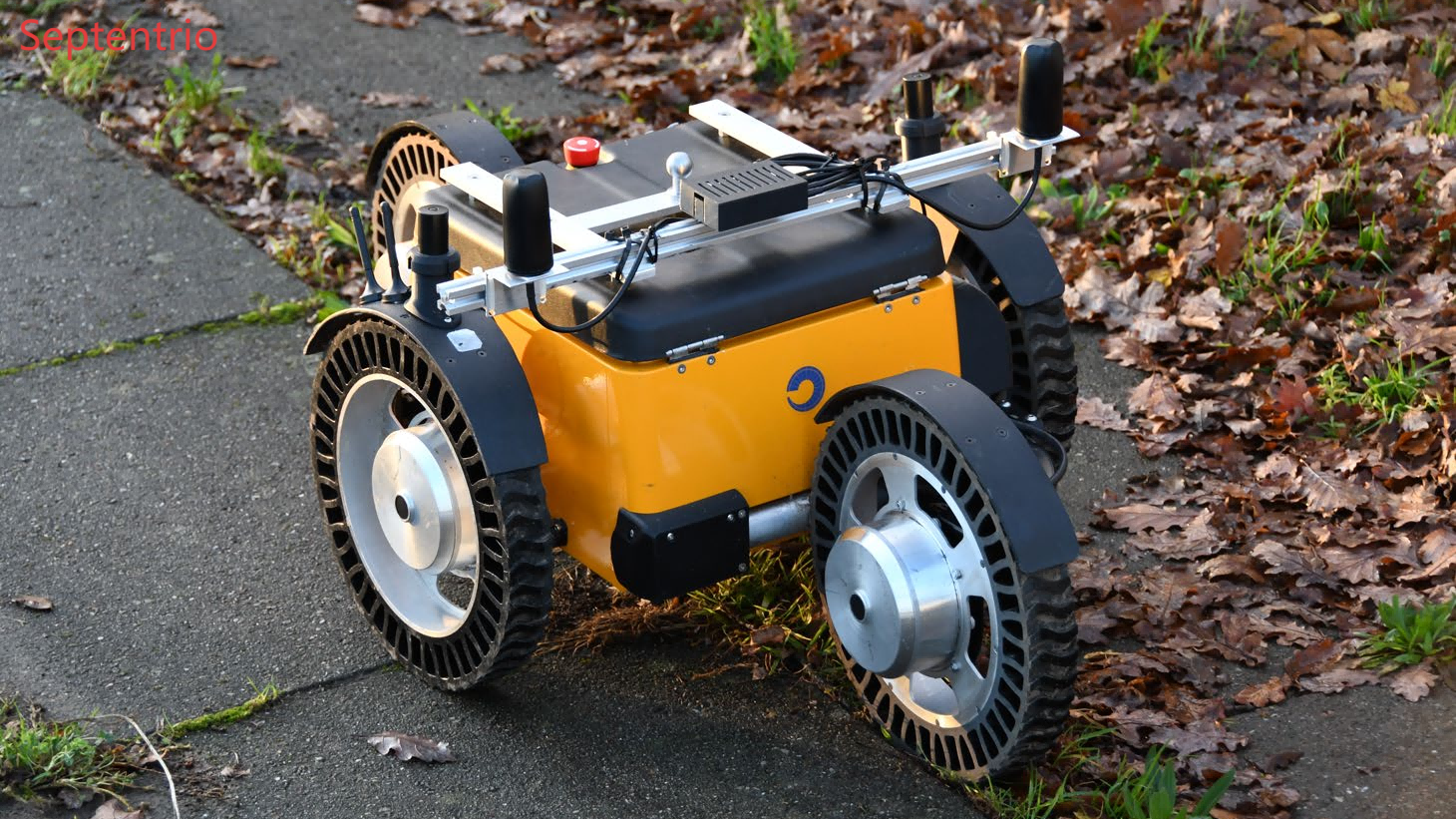

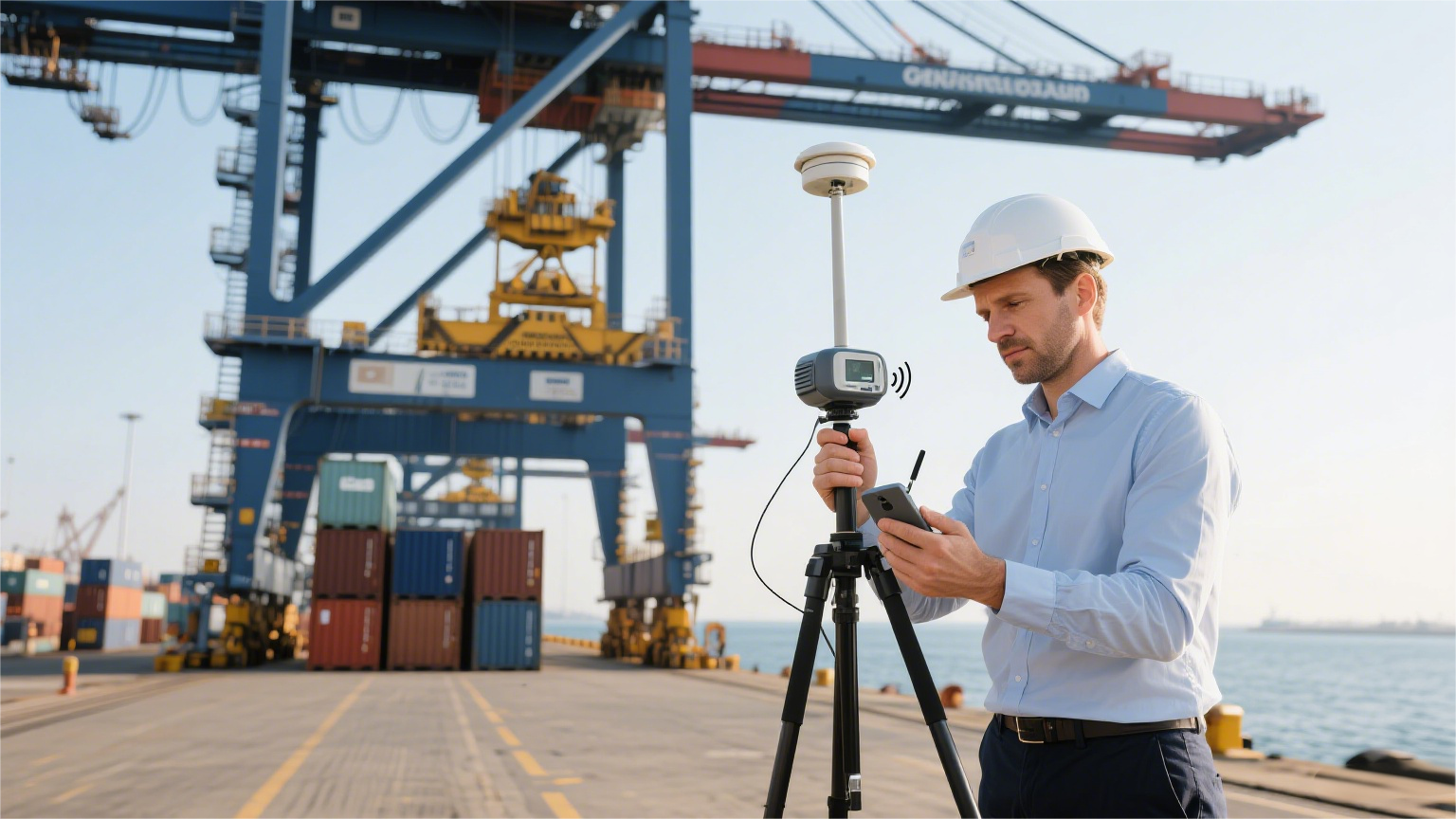

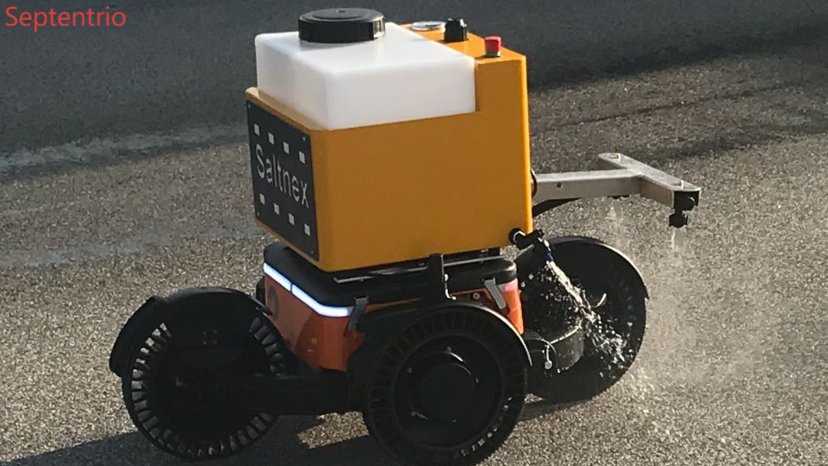

The Septentrio mosaic-X5 GNSS receiver translates directly to net profit savings for customers: Eliminates base stations with satellite-based PPP-RTK; Reduces power consumption to 0.6 watts, halving battery size and significantly lowering overall weight, extending drone flight range by 20%; Saves time with 100Hz + 6ms performance, accelerating control loop debugging from weeks to days, enabling faster prototyping, market launch, and order acquisition. Today, mobile mapping, unmanned vessels, robots, AGVs, and smart agriculture all compete on “lightweight, compact, low-power” specifications. Choosing the wrong positioning board means rework, penalties, and lost customers; choosing right means instant cost reduction, performance boost, and orders rolling in. The Septentrio mosaic-X5 GNSS receiver packs “centimeter-level accuracy + millisecond-level timing + interference resistance + satellite-based correction” into a compact 31mm, 6.8g, 0.6W package. Solder it in today, and tomorrow your equipment will operate with stability, precision, and efficiency. Equip your drones, robots, or surveying instruments with this “powerhouse in a small package” for precise takeoff and a competitive edge in landing first!
Summary
This article explains the capabilities of the Septentrio mosaic‑X5 GNSS receiver and how its full‑constellation tracking, 100Hz output, PPP‑RTK, and AIM+ anti‑jamming technology deliver industry‑leading precision, stability, and power efficiency.
